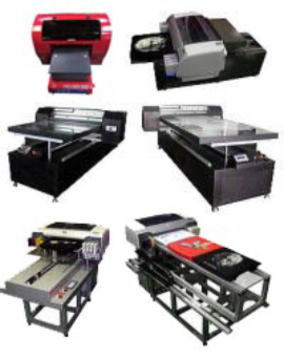

Printex UVPrintex UV

Profile

  • Flatbed type inkjet printer
  • Print range　　W420〜1080 X L〜2500 X H100　(It's possible to print up to 100mm object）
  • 360 X 360 dpi　〜　2880 X1440dpi
  • Because UV ink is used, it is possible to print for the material which ink does not soak into without pretreatment.　And it fixed firmly on the material because the UV resin is conained.
  • It is possible to print on transparent and dark color media vividly.
  • Price　　Contact us




Printex 420 movie
Sample picture


White ink print

In the case of printing on dark materials with only color ink, color is not appears because ink color is negative to the background color.
But you can print according to the imaging.
Like a right picture, After printing white , you must print color.
　White 　　　　　　　　　Color


White ink circuit system

White ink is made of titanium dioxide.
The weight of titanium dioxide is four times heavier than water, so it precipitates and causes nozzle clogging.
For like that reason, this system is stiring white ink.


Printer change system

it take as an example of direct ink and water pigment ink.
Because these inks are oil based ink and water based ink, you must clean a tube, cartridge, print head if you want to change from oil based ink to water based ink.
Even if you can clean all of them, when you change ink type, the trouble is caused at a high probability.
Then, we develop this printer change system.
You can change ink type only by changing printer assembly like right picture.
　　Water pigment ink　　 Direct ink
　　　　　　Chang printer assembly


Water pigment ink・Direct ink

This ink is mainly used for cloth, textile, wood and so on.
(materials which soak ink)　→　detail
（However, as to white ink printing, it needs 50% cotton)
This ink is mainly used for acryle, tile, metal, leather and so on.
(Materials which not soak ink)　→　detail
It contains UV resin.　By irradiating with ultraviolet rays, it hardens on a material surface and fix on the materials firmly.　Moreover, there are no worries about a color fading in ultraviolet rays.
It is effective for printing on sign, metal, plastic, china,etc.
But it is unsuitable for textile printing because of hardenability
